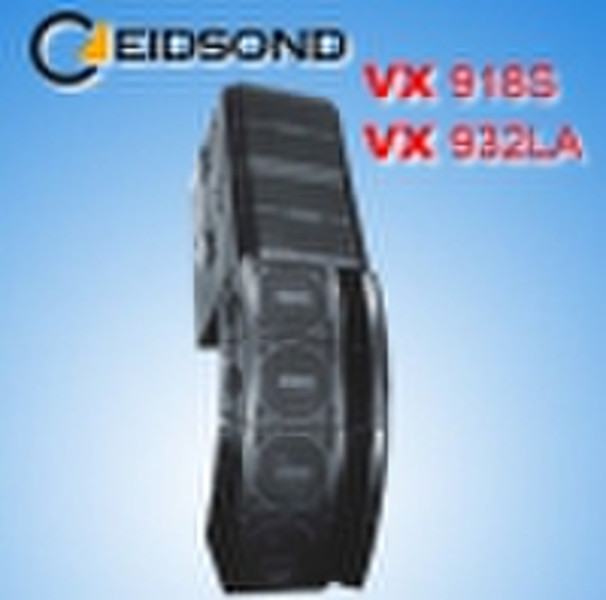

Active Line Array, Line Array Speaker

Professional audioActive line array speaker system VX series with Neodymium components is high quality, nice sound and very good price, both can bepassive or activeline array speaker: VX918S (SUBWOOFER) System Type 18"subwoofer Frequency Range(-10dB) 31Hz-220Hz Frequency Response(±3dB) 34Hz-200Hz Input Connection Modes Switchable,+1/-1 or +2/-2 Recommended Crossover Frequencies 80Hz,24dB/octave HPF; 80Hz,24dB/octave LPF Power Rating (Continuous/Program/Peak) 400W/800W/1600W Maximinal SPL 130dB SPL peak Sensitivity(1w@1m) 98dB SPL LF Driver 1×18"(457mm) Neodymium woofer Nominal Impedance 8Ω Mounting Top mounted M20 threaded socket for optional pole Suspension/Mounting Top mounted M20 threaded socket for optional pole Enclosure Rectangular,18mm,12-ply birch plywood Finish Black polyester finish Grille Powder coated,12-gauge perforated steel Dimensions(H×W×D) 508mm×597mm×749mm;(20.0in×23.5in×29.5in) Net Weight 38kg(83lb) Optional Accessories Heavy-dury pole VX Array Frame VX932LA System Type 12" two way, line array loudspeaker system Frequency Range(-10dB) 55Hz-19.5kHz Frequency Response(±3dB) 70Hz-19kHz Coverage Pattern100°×15° nominal(horizontal×vertical) Crossover Model Bi-amp/passive, externally switchable Crossover Frequency 1.3kHz Power Rating (Continuous/Program/Peak) Passive:400W/800W/1600W Bi-amp LF:300W/600W/1200W Bi-amp HF:100W/200W/400W System Maximum SPL³ 133dB SPL peak(passive) LF:130dB HF:137dB System Sensitivity(1w@1m) 101dB SPL (passive mode) LF:99dB HF:111dB LF Driver 1×350mm(12") woofer with neodymium-magnet HF Driver 1×350mm(12") woofer with neodymium-magnet Nominal ImpedancePassive:8Ω Bi-amp LF: 8ΩBi-amp HF: 8Ω Enclosure 18mm,11-ply birch plywood Suspension/Mounting Suspension requires optional VX line-array frame kit/10 eyebolt Finish Black DuraFlex finish Grille Power coated,black,16-gauge perforated steel Input Connectors2×NL4MP Speakon Dimensions(H×W×D) 350mm×595mm×375mm Net Weight 22kg (48.5lb) Gross weight 25kg
